TL;DR

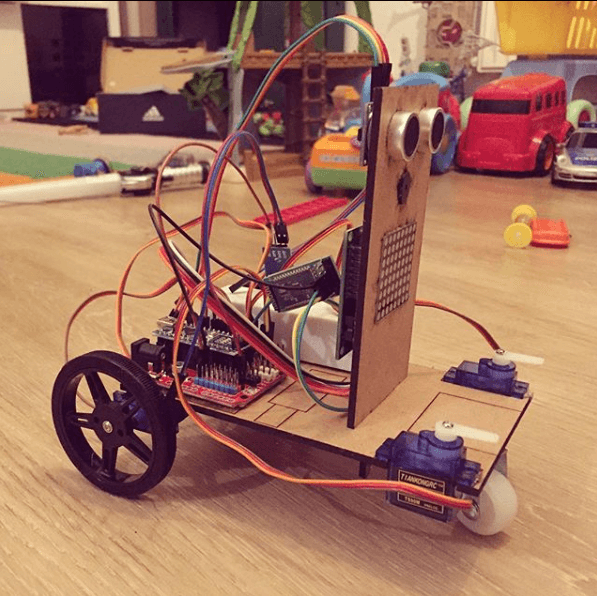

DYOR Rover

Objective

This project focuses on the design, development and manufacturing of a rover that can autonomously navigate covering aspects such as control, sensorization, programming and planning of robotic systems. The DYOR robot follows a very basic approach and it is dependent on ultrasonic sensors and a digital compass with Arduino. The robot is a standalone system and the autonomous navigation is done by the onboard controller. The methodology implemented is commonly used in robotic and informatics.

Summary

HW Aduino Nano v3.0 together with its expansion board with the main advantage to offer rows with pins connected to +5V and 0V, which allow directly connect more sensors and actuators, otherwise it would be needed the breadboard to connect +5V and GND pins.

The Nano v3.0 has 14 Digital-Inputs/Outputs and 8 Analog-Inputs. Some pins can offer an extended feature for serial communication through USB. I support features to control motors with PWM signals, switches or optical sensors and I2C / SPI to communicate with external devices.

Code

This is some used Code()

Servo object control

#include <Servo.h>
Servo myservo1;
Servo myservo2;

Servo spin

void setup() {
  Serial.begin(9600);
  myservo1.attach(8);
  myservo2.attach(9);
  pinMode(trigPin, OUTPUT);
  pinMode(echoPin, INPUT);
  pinMode(3, OUTPUT);
}

Distance stop, Control motors and wheels spin time

void loop() {
  digitalWrite(trigPin, HIGH);
  _delay_ms(500);
  digitalWrite(trigPin, LOW);
  duration = pulseIn(echoPin, HIGH);
  distance = (duration/2) / 29.1;
  if (distance < 40) {
    digitalWrite(3, HIGH);
    myservo1.write(n);
    myservo2.write(180-n);
   delay(1000);
   myservo1.write(n);
   myservo2.write(90-n);
   delay(500);
}

Waiting Mode

  else { // waiting mode
    digitalWrite(3, LOW);
    myservo1.write(180-n);
    myservo2.write(n);
}
}

Features

  • Arduino Uno board
  • Ultrasonic Distance Sensor - HC-SR04
  • HC-05 Wireless Bluetooth RF
  • Jumper Wires Generic Male/Male
  • LED generic
  • Wheel kit
  • Powerbank
  • Wood chassis
  • Hot glue gun
  • Android App Inventor2
  • TinkerCAD
  • Schematics Fritzing

Backstory

DYOR robot is the Hello World to robotics arena. Working with this board helped me with in-depth understanding of Microcontroller’s architecture and ARM architecture.

This is suitable to develop quick embedded applications with sophisticated libraries, APIs and Arduino development environment.

CAD Design | Digital Manufacturing | Electronic assembly | Robotic Programming

Tutored by Dr. Leopoldo Armesto from the Universitat Politècnica de Valencia (Spain)
